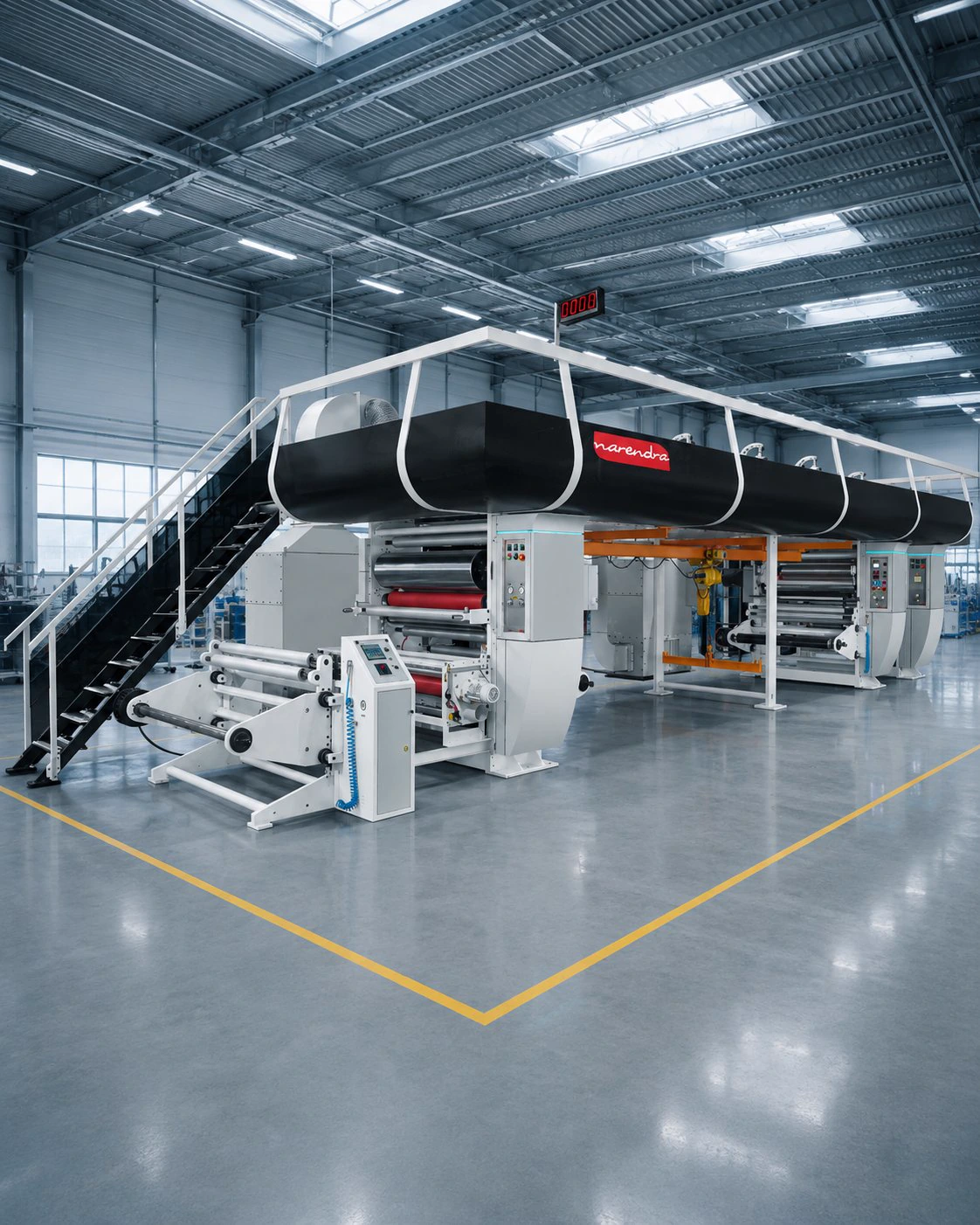

GravoLam Dry
High-strength dry lamination

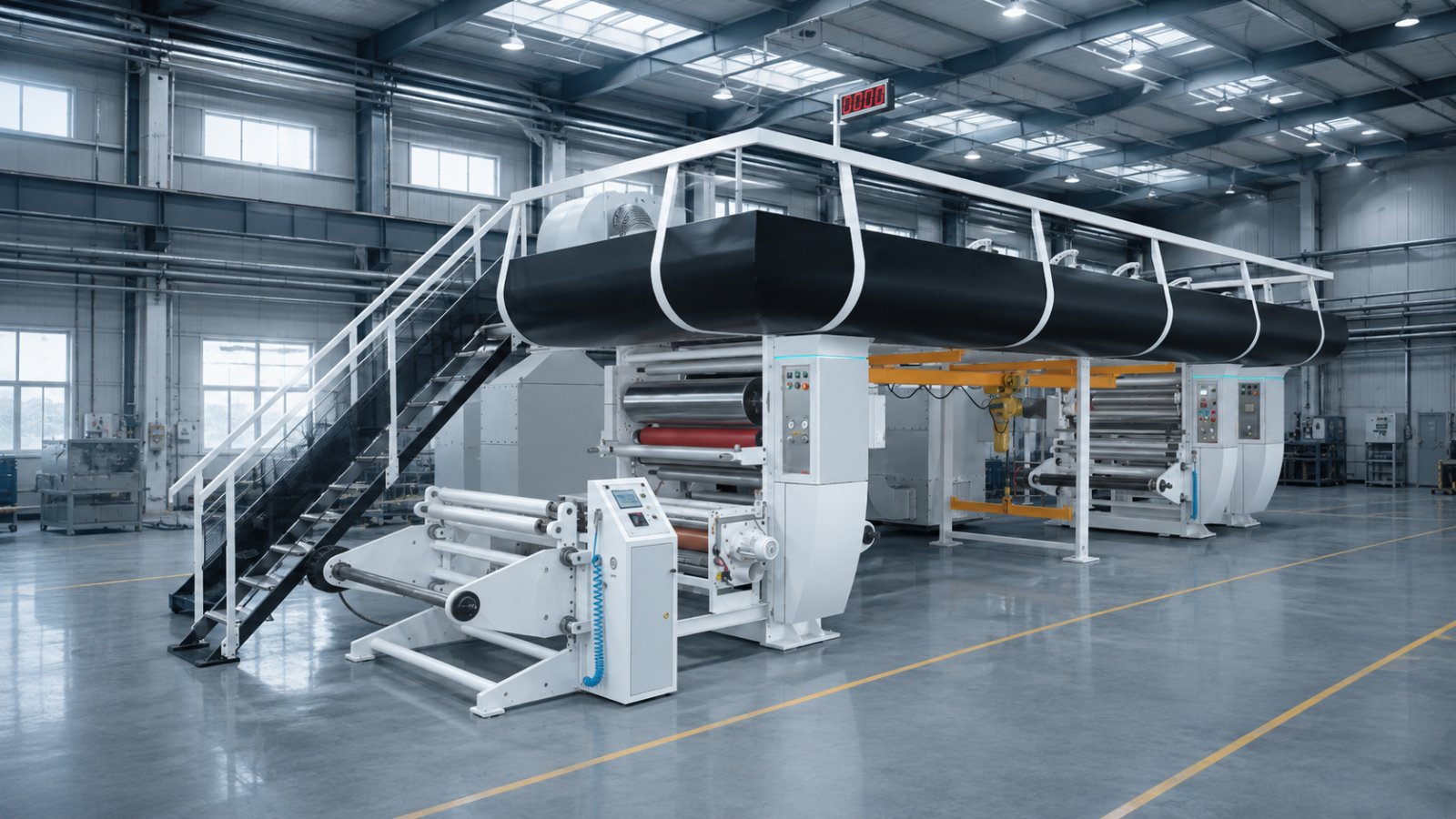

A 250 metre per minute laminator for solvent and water based work, with six temperature controlled zones and a hard chrome plated nip, doubling as a single head coater.
It is a dry lamination machine designed for high strength lamination of two non porous substrates, through a precise, automated and highly controlled system. It integrates a coating head, an six zone drying chamber and a hard chrome plated nip, ensuring flawless bonding from the first metre onward.
Key features and benefits
One machine, high-strength lamination in line
GravoLam Dry integrates a coating head, an eight zone drying chamber, a hard chrome plated nip and twin chilling rollers into a single controlled machine, working as a complete system to hold quality across the run.
Technical documentation
GravoLam Dry ships with full technical documentation, from mechanical drawings to electrical schematics and operating manuals, supporting its installation, operation and long service life as a production machine on your flexible packaging line, wherever it runs.
Download Brochure
Machine specification and installation requirements sheet
Technical specifications
Complete GravoLam Dry build process
The project begins with a detailed specification of the machine from Narendra Gravure’s technical office, in coordination with your production team. At this stage the configuration is matched to your substrates and structures, and the mechanical and electrical drawings for in house manufacturing are generated.

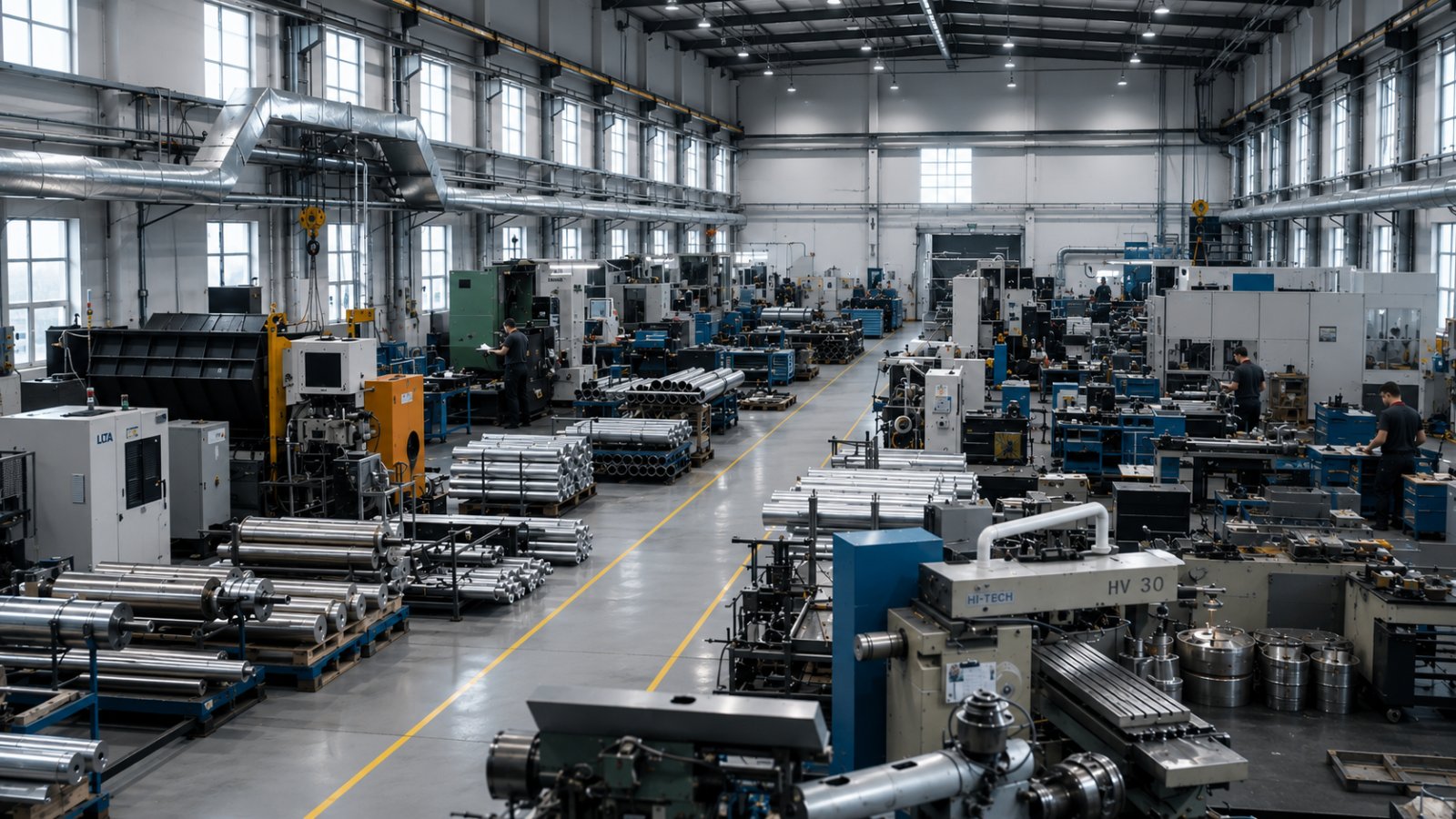

The machine is produced through an in house process focused on precision and quality control. Our VMC, CNC and grinding machines ensure repeatability, reliability and a consistent result, reducing deviations compared with bought in assemblies.
Installation is simple and efficient: the machine is commissioned on your floor through an agile and uncertainty free start up, thanks to prior testing and the preparation of drawings and documentation, contributing to a cleaner and safer route into full production.
GravoLam Dry for your line
It can be integrated into lines developed by third parties. Based on your existing layout, or with support from our technical office, we adapt the machine to slot into your line, ready to install and run.
We analyse the technical fit and define the best way to integrate it, maintaining control over timelines, cost and finished quality.
Two non porous substrates such as foil and CPP or polyester and poly, bonded with a solvent or water based adhesive for high strength laminates.
An eight zone drying chamber up to 100 degrees, a hard chrome plated nip and register control, with SIEMENS electronics and 45 mm plate frames from our own CNC and VMC machines.
Yes, it can be used for registered lamination, a single head coating machine, so one platform covers a variety of solvent based lamination and coating jobs.
Yes. It is supported directly by Narendra Gravure after installation, with remote diagnostics, spare parts and the same in house team that designed and built the machine.
