GravoDoc 350
Doctoring and salvage rewinding
A 350 metre per minute doctoring machine that rewinds finished reels affected by defects such as slipping during final winding.
It is a compact doctoring and salvage winding machine designed to rewind finished product that has picked up defects such as slipping during final winding, through a simple, controlled system. Auto tension control and web guiding recover good material from the first metre onward.
Key features and benefits
One machine, salvage rewinding in line

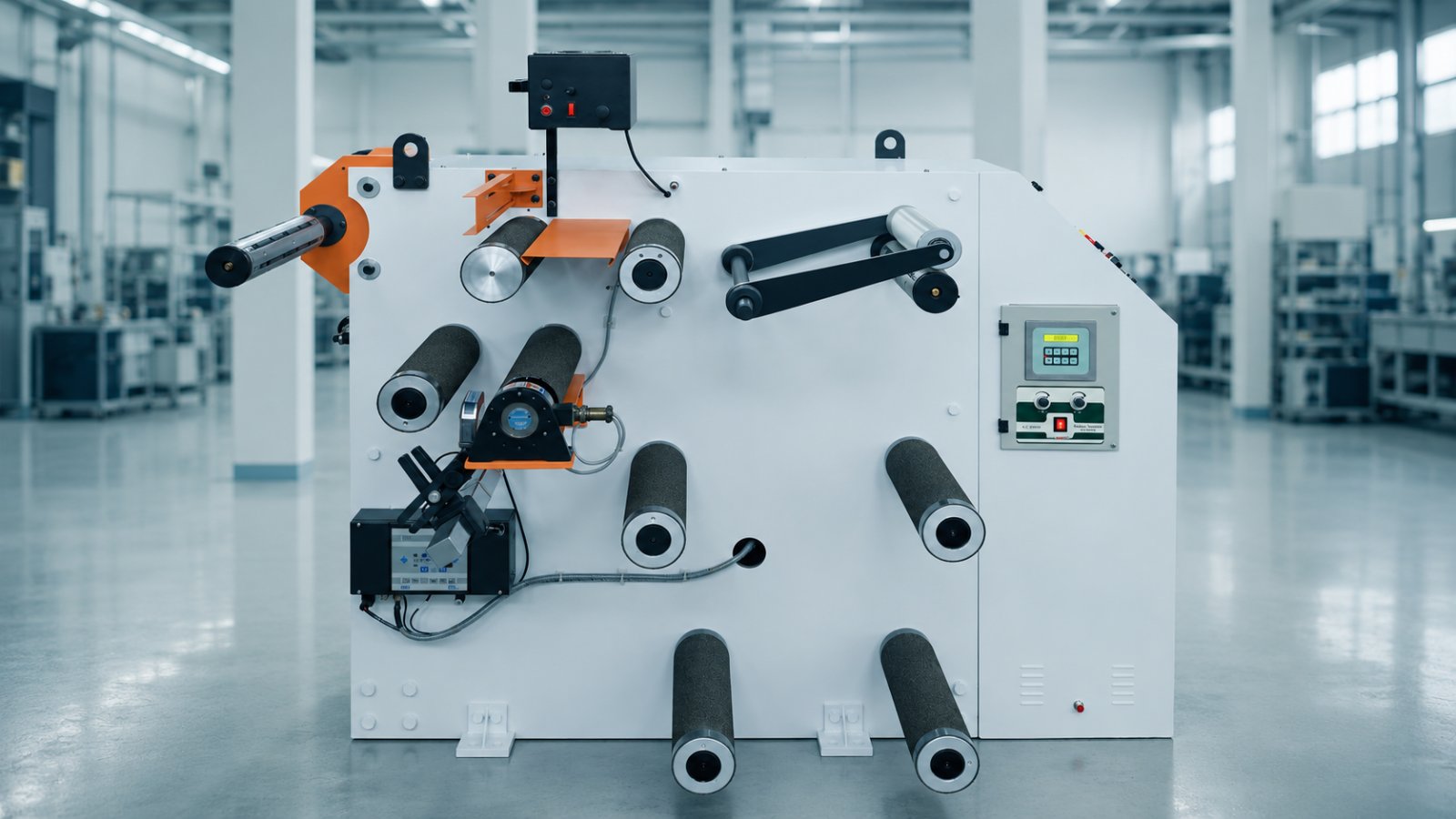

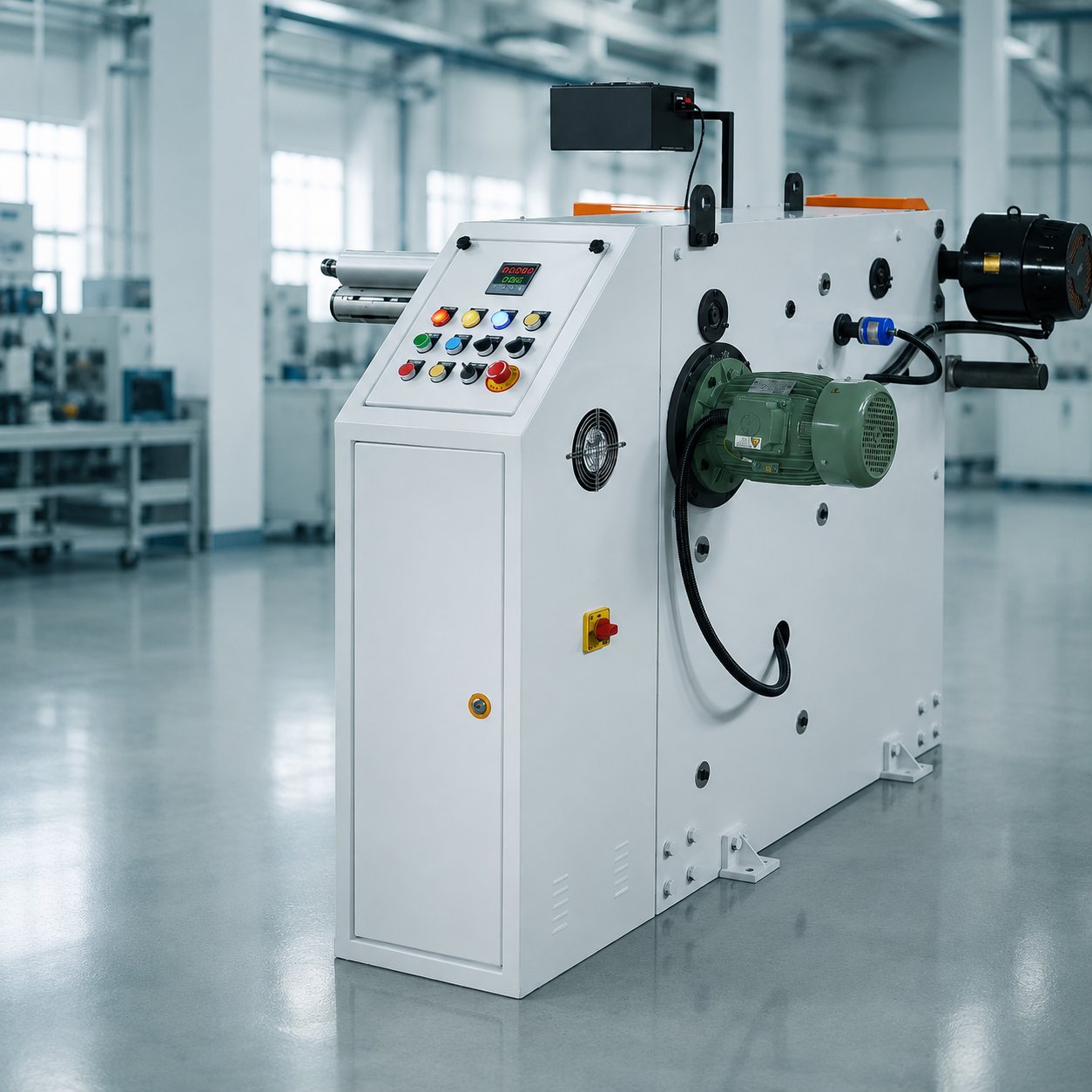

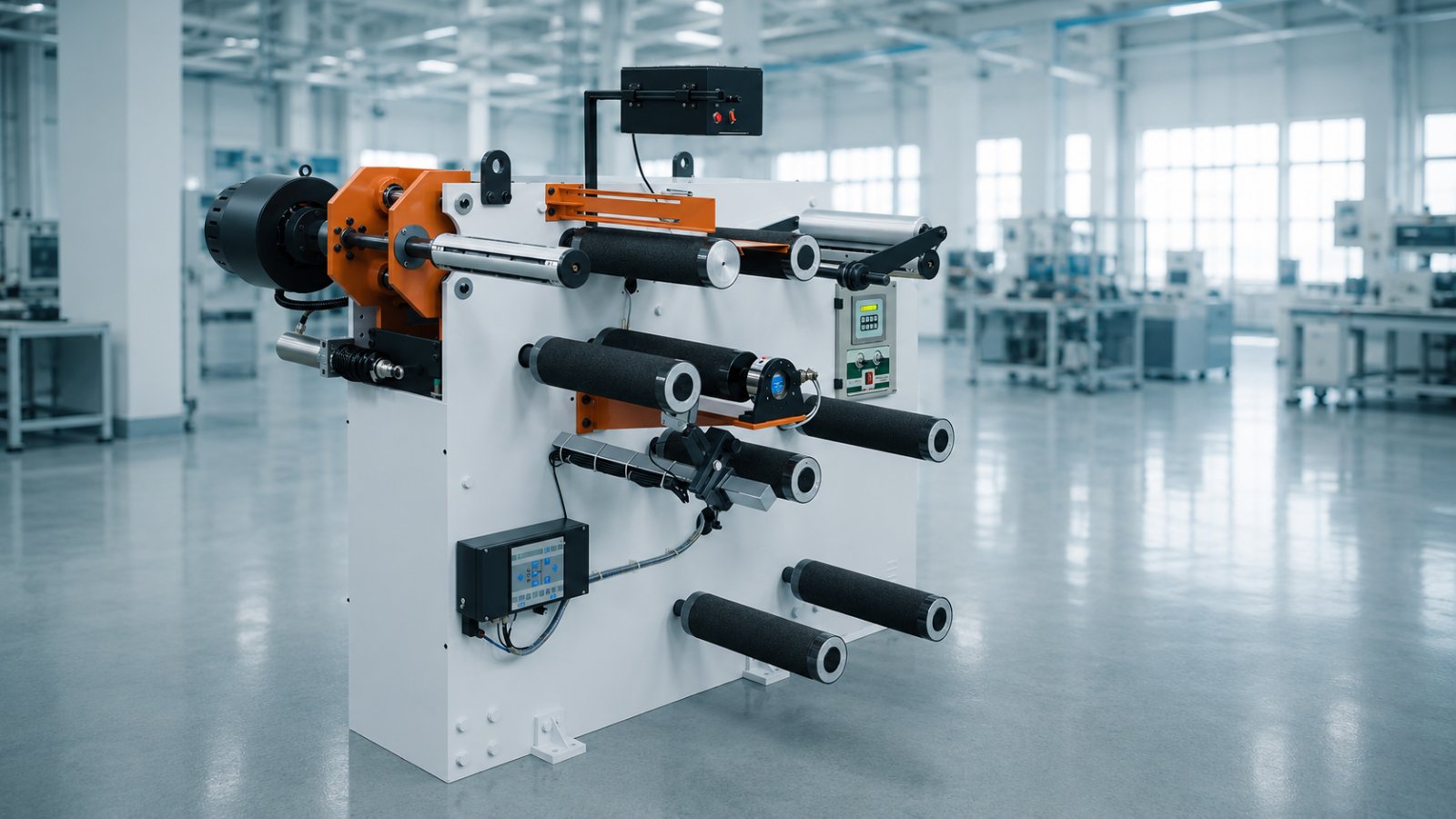

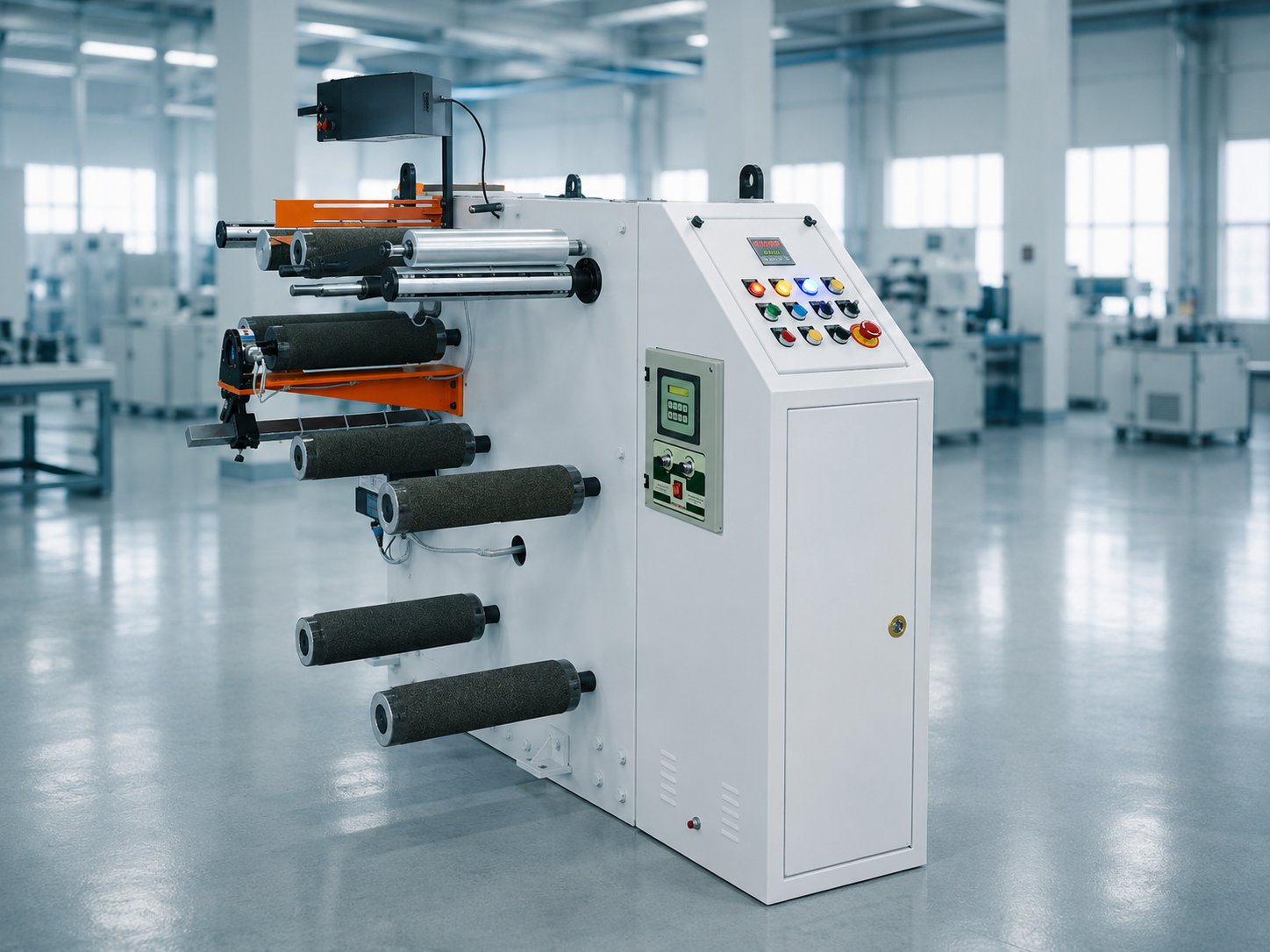

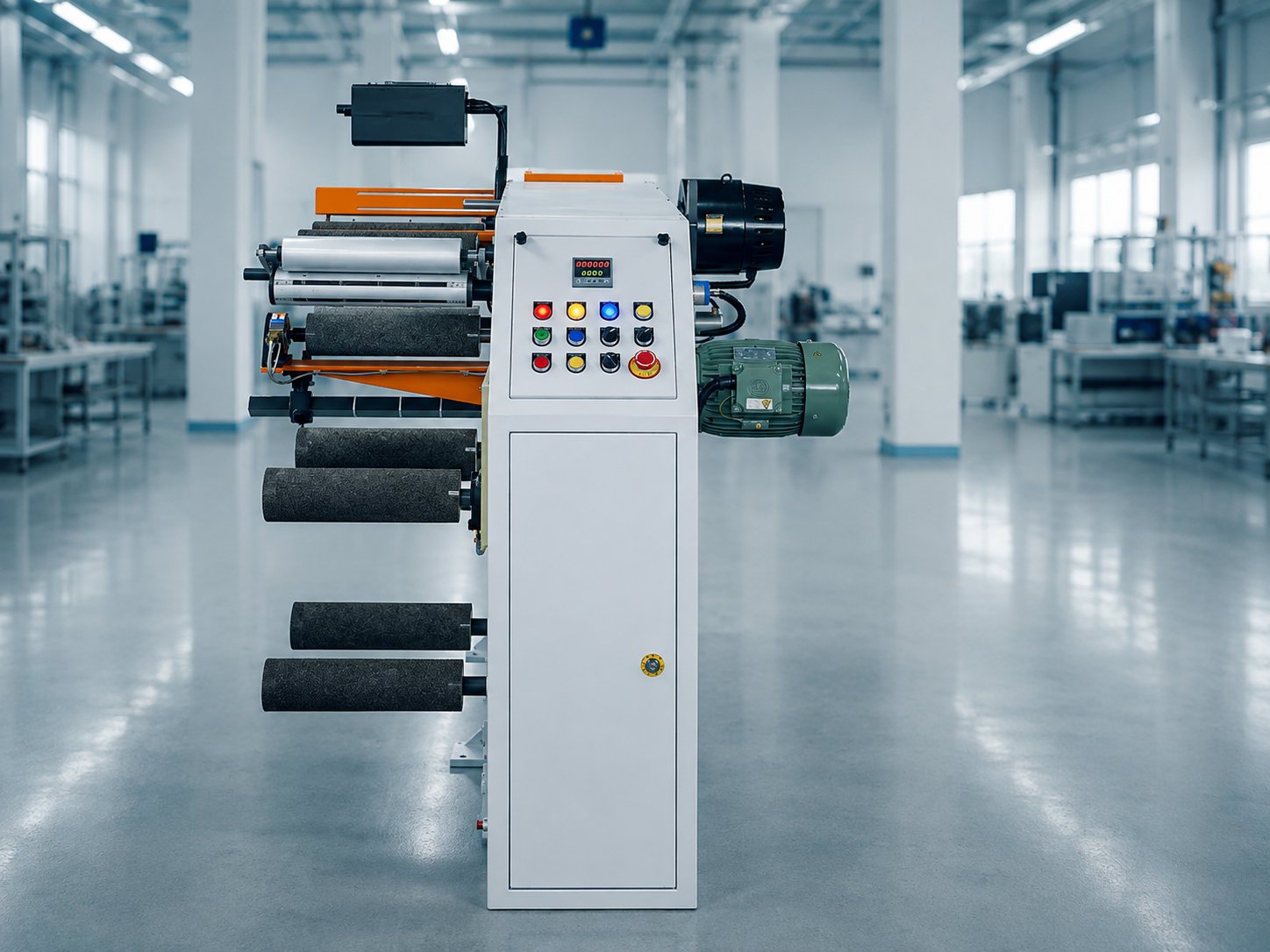

GravoDoc integrates a floating unwind, auto tension and web guiding and a floating rewind into a single compact machine, working as a complete system to recover good material cleanly.
Technical documentation
GravoDoc 350 ships with full technical documentation, from mechanical drawings to electrical schematics and operating manuals, supporting its installation, operation and long service life as a production machine on your flexible packaging line, wherever it runs.
Download Brochure
Machine specification and installation requirements sheet
Technical specifications
Complete GravoDoc 350 build process
The project begins with a detailed specification of the machine from Narendra Gravure’s technical office, in coordination with your production team. At this stage the configuration is matched to your substrates and structures, and the mechanical and electrical drawings for in house manufacturing are generated.

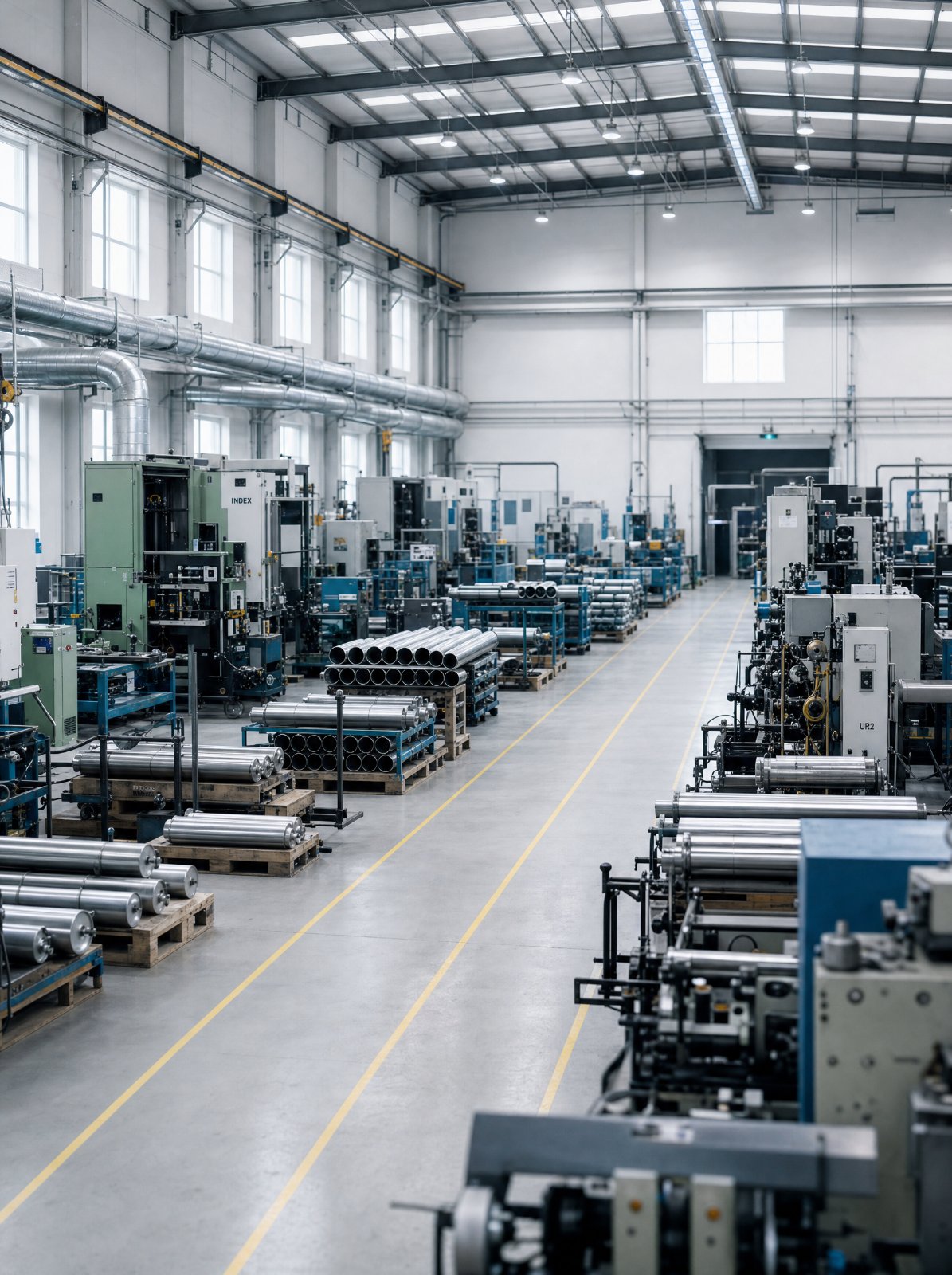

The machine is produced through an in house process focused on precision and quality control. Our VMC, CNC and grinding machines ensure repeatability, reliability and a consistent result, reducing deviations compared with bought in assemblies.
Installation is simple and efficient: the machine is commissioned on your floor through an agile and uncertainty free start up, thanks to prior testing and the preparation of drawings and documentation, contributing to a cleaner and safer route into full production.
GravoDoc 350 works with
GravoDoc 350 for your line
It can be integrated into lines developed by third parties. Based on your existing layout, or with support from our technical office, we adapt the machine to slot into your line, ready to install and run.
We analyse the technical fit and define the best way to integrate it, maintaining control over timelines, cost and finished quality.
Doctoring or salvage winding, rewinding finished reels that have picked up defects such as slipping during final winding, to recover good material.
A floating unwind and rewind with a cantilever design, auto tension control and web guiding, with SIEMENS electronics and 45 mm plate frames from our own CNC and VMC machines.
Yes. It is easily customised, for example with an inkjet printer to code serial or batch numbers on finished reels.
Yes. It is supported directly by Narendra Gravure after installation, with remote diagnostics, spare parts and the same in house team that designed and built the machine.
