Gravo2in1 325
Wet lamination of paper and foil registered HSL coating on one line

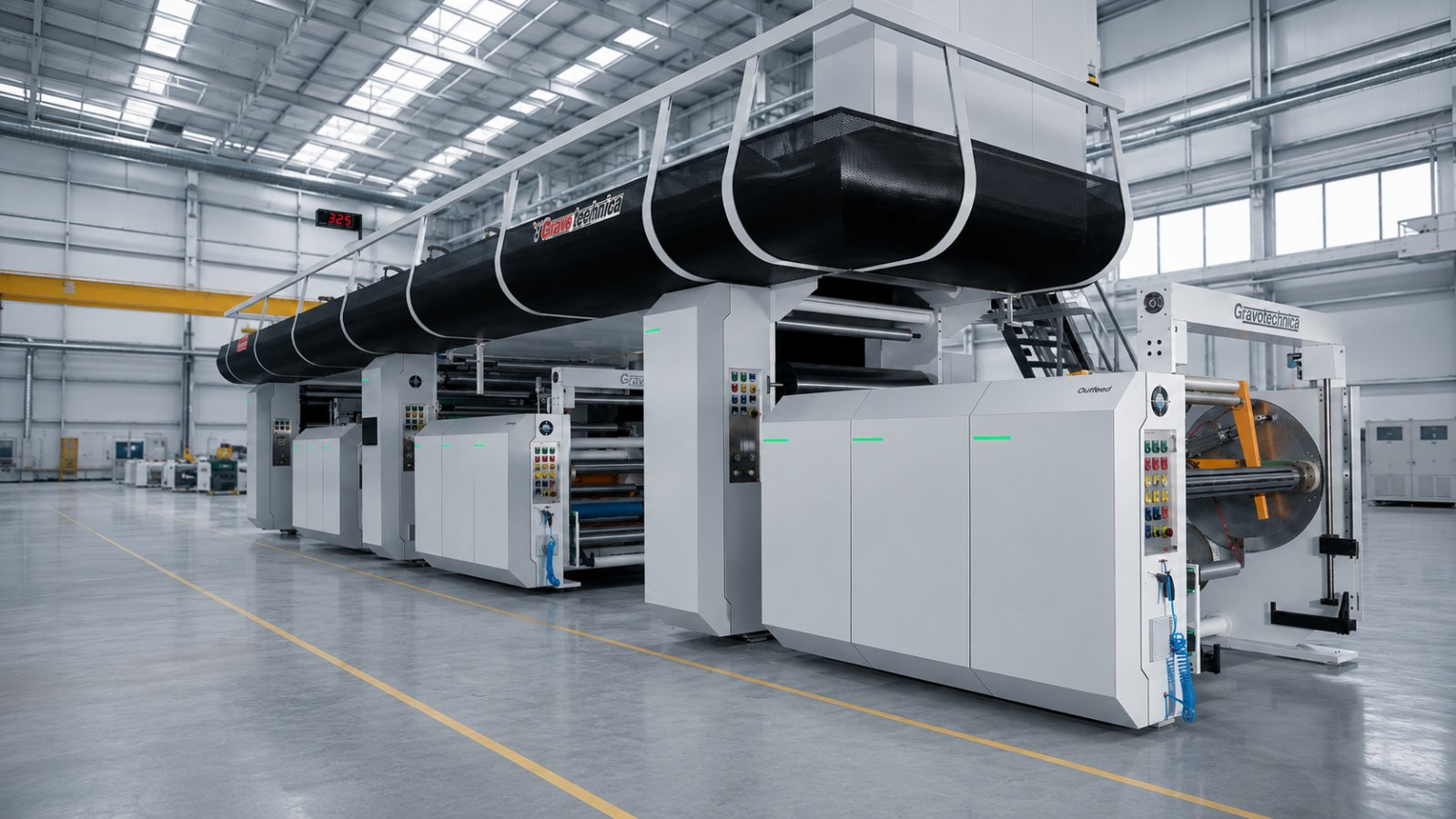

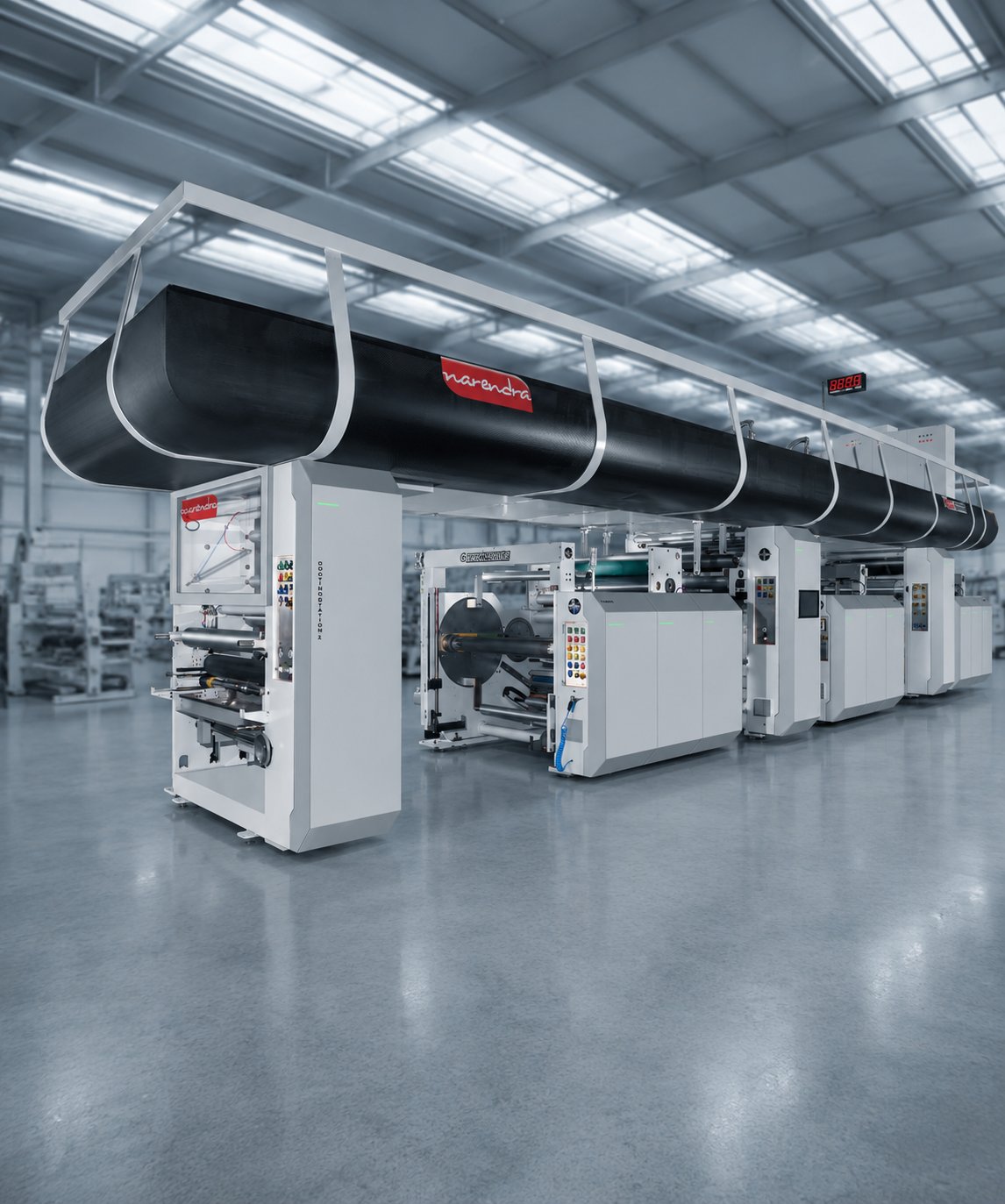

A 325 metre per minute combi that builds two layer coated or three layer laminated paper foil structures in a single pass, with register control, twin chilling rollers and hot air recirculation keeping every job in control. Register heat seal or cold seal, the same line adapts to your mix.
It is a two in one combi machine designed to build 3-ply paper foil laminates in a single pass, through a precise, automated and highly controlled system. It integrates wet lamination, a registered coating head and a high efficiency curing tunnel, ensuring a constant and traceable level of quality from the first metre onward.
Key features and benefits
One machine, two processes in line
Gravo2in1 integrates wet lamination, registered coating, curing and chilling into a single controlled machine. It brings together in one line functions that previously required two machines, working as a complete system to hold quality across the run.
Technical documentation
Gravo2in1 ships with full technical documentation, from mechanical drawings to electrical schematics and operating manuals, supporting its installation, operation and long service life as a production combi on your flexible packaging line, wherever it runs.
Download Brochure
Machine specification and installation requirements sheet
Technical specifications
Complete Gravo2in1 build process
The project begins with a detailed specification of the machine from Narendra Gravure’s technical office, in coordination with your production team. At this stage the lamination, coating and curing options are matched to your substrates and structures, and the mechanical and electrical drawings for in house manufacturing are generated.
The machine is produced through an in house process focused on precision and quality control. Our VMC, CNC and grinding machines ensure repeatability, reliability and a consistent result, reducing deviations compared with bought in assemblies.
Installation is simple and efficient: the machine is commissioned on your floor through an agile and uncertainty free start up, thanks to prior testing and the preparation of drawings and documentation, contributing to a cleaner and safer route into full production.
Gravo2in1 325 for your line
It can be integrated into "converting units" developed by third parties. Based on your existing layout, or with support from our technical office, we adapt the machine to slot into your line, ready to install and run.
We analyse the technical fit and define the best way to integrate it, maintaining control over timelines, cost and finished quality.

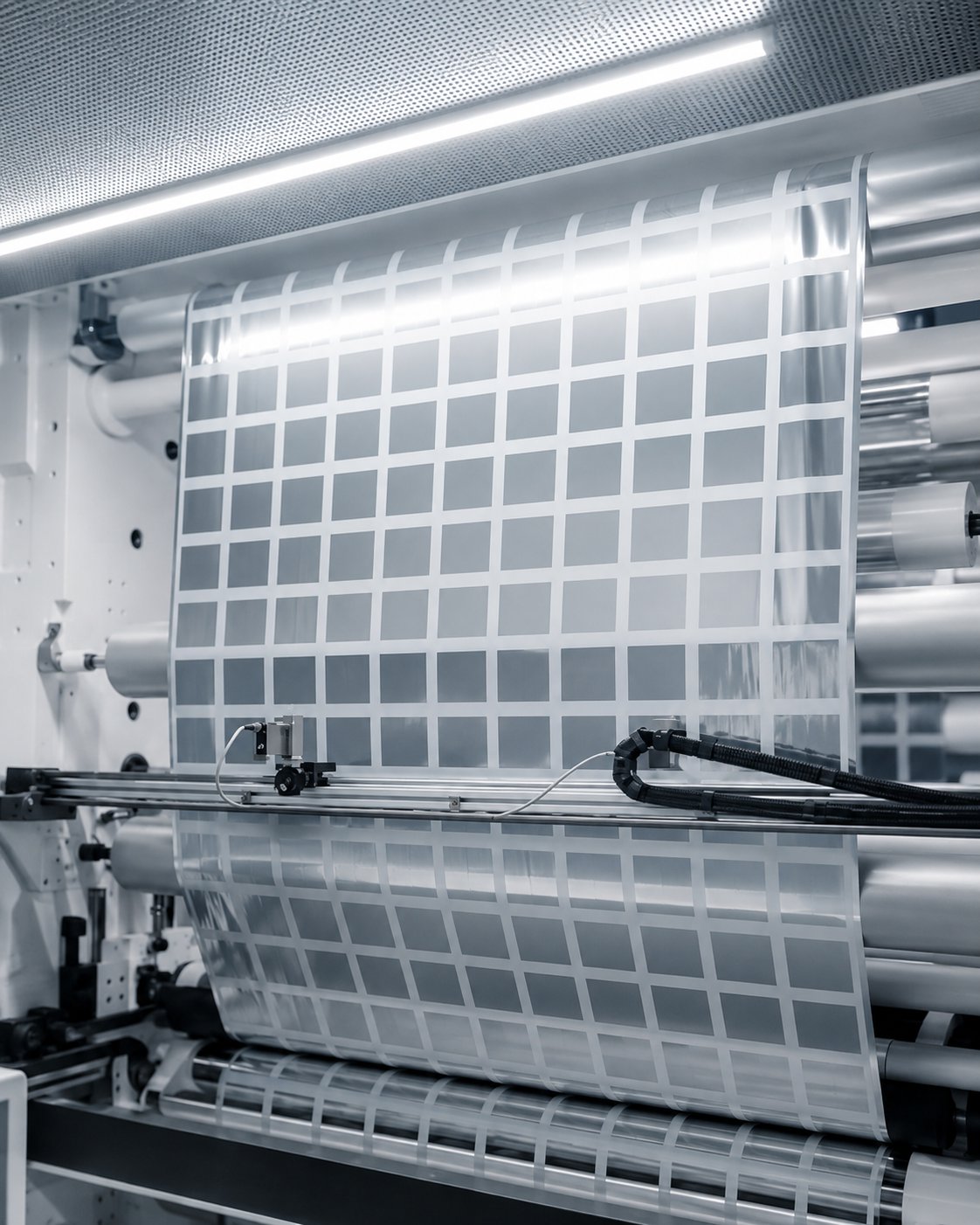

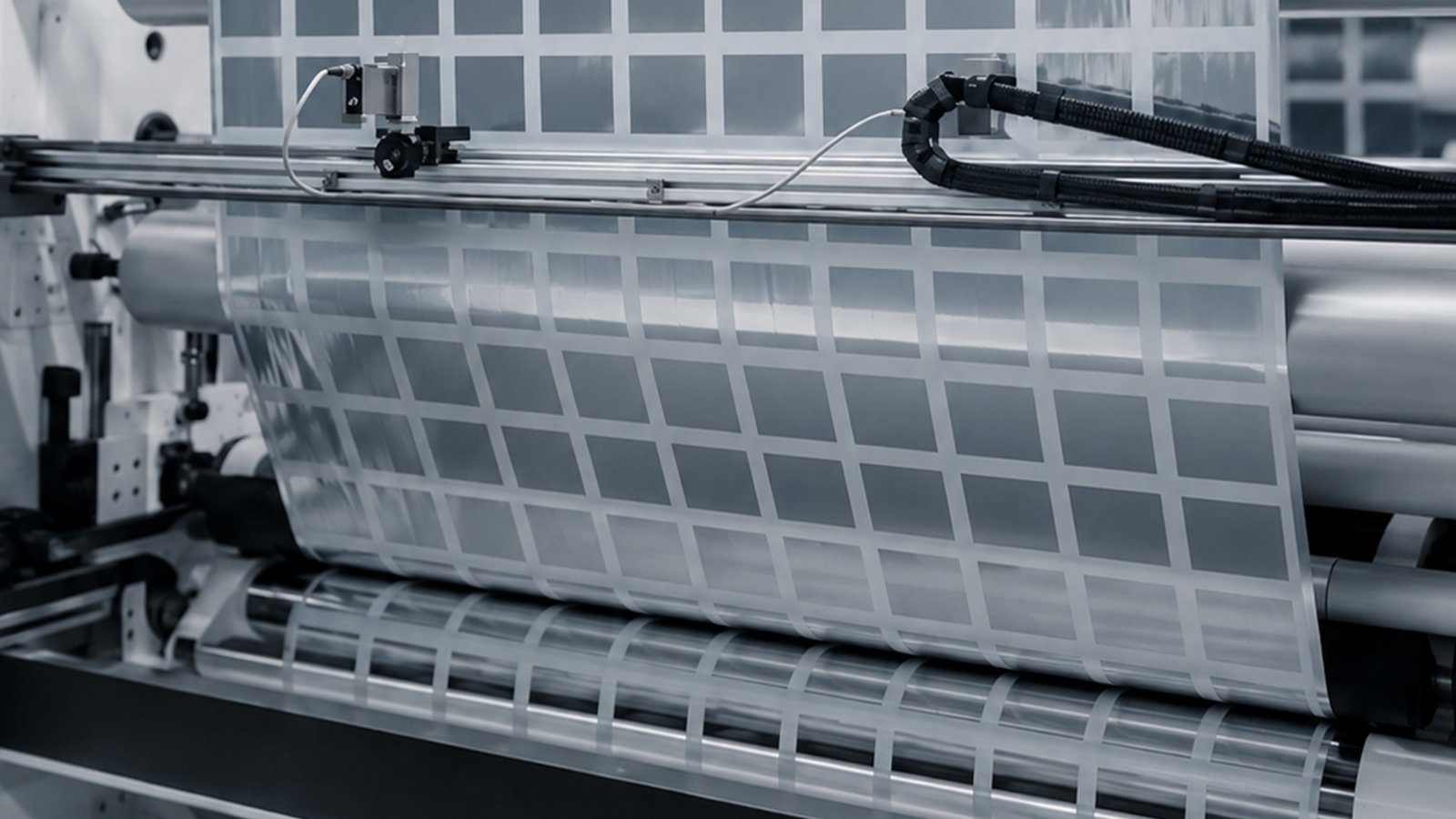

By combining wet lamination and registered coating on one machine, a 3-ply paper foil HSL structure is built in a single pass instead of two, cutting handling, time and energy per run.

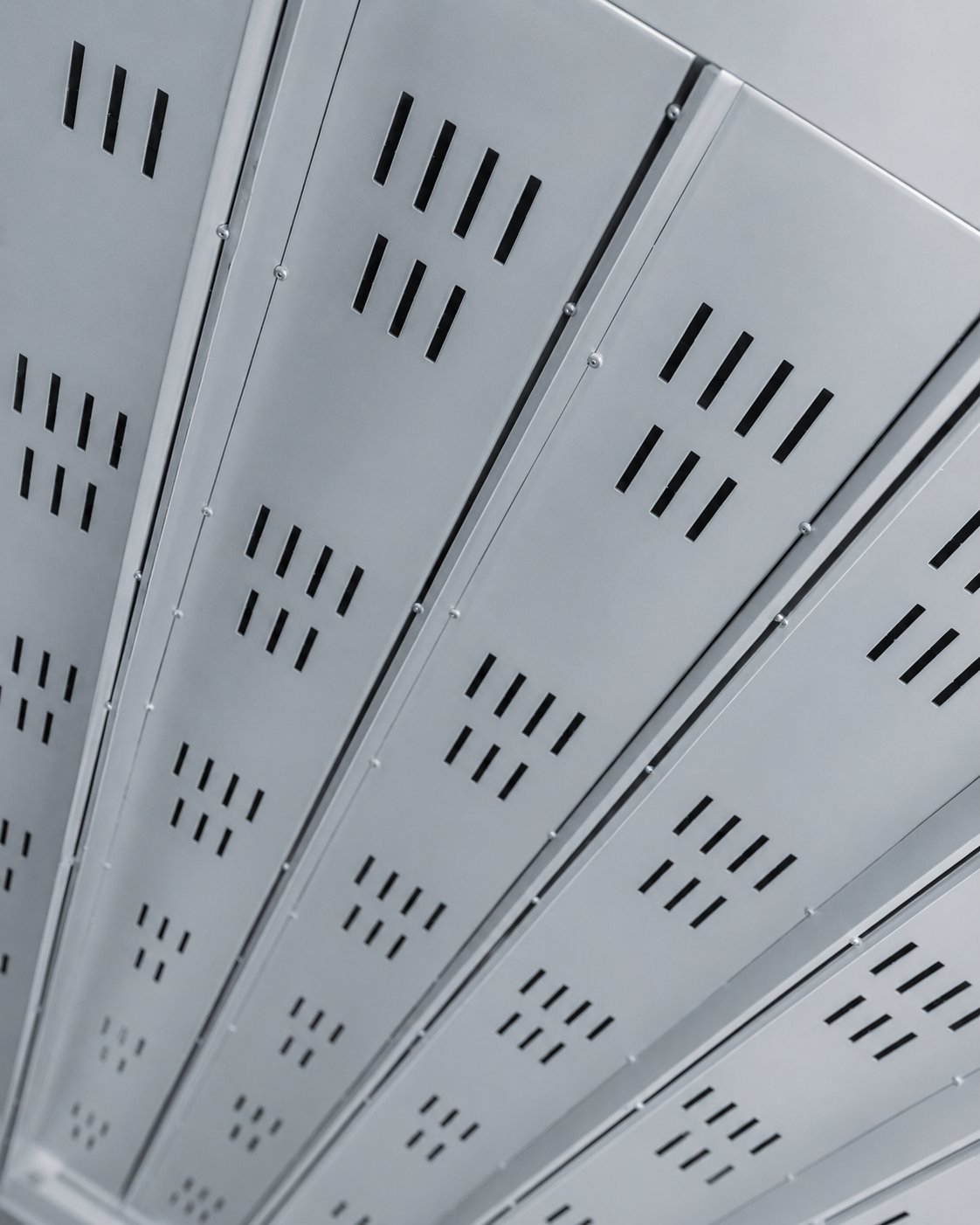

Gravo2in1 is built around register control and a high efficiency curing tunnel with hot air recirculation, plus twin chilling rollers, SIEMENS electronics and main frames cut from solid 45 mm plate on our own CNC and VMC machines, so it stays precise, efficient and built to last.
One machine instead of two lowers variable cost, floor space and energy, helping bring forward return on investment. Gravo2in1 improves converter profitability with up to 50% heat recirculation and registered coating, while cutting waste, rework and the indirect costs of running two separate machines. Built for both register hot and cold seal applications.
Yes. Gravo2in1 is supported directly by Narendra Gravure after installation, with remote diagnostics, spare parts and the same in house team that designed and built the machine, kept close for its full service life.
